Ceiling steel profile specifications
2022-11-11
Ceiling steel profile specifications.CrocStud Premium Drywall Stud.Select your product below
The premium range of CrocStud Steel Stud Framing Systems from Hopestar are made from only prime galvanized steel and do not use any“Cold Reduced Coil Stock”.

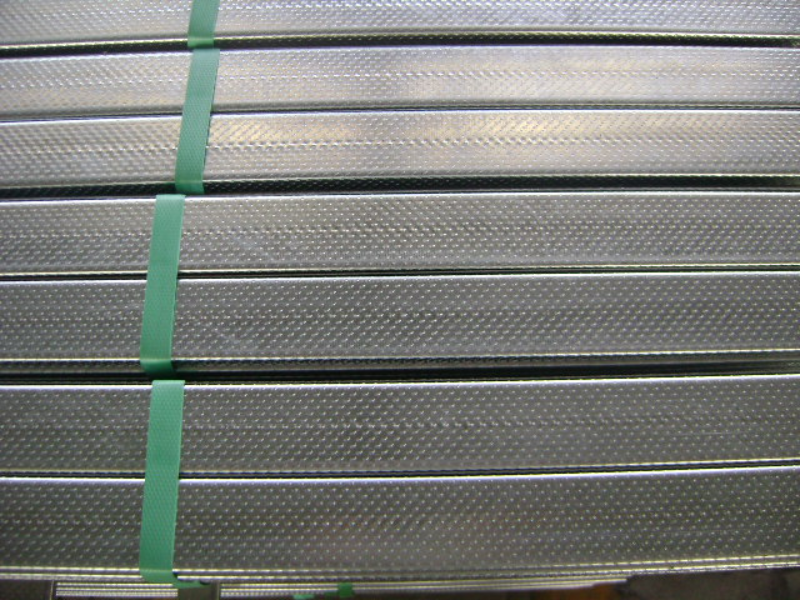

CrocStud Drywall Studs feature a ribbed face that makes CrocStud stronger for less twist and superior screw penetration.Available standard with G40 Galvanized Coating;CrocStud can also be coated with G60 and G90 coating on request.
Featuring a wide range of components Hopestar Interior Drywall Framing Studs that are tested by STAR Structural Testing and Research Inc.and are rolled from prime galvanized American made steel.
Available in a variety of steel stud sizes:
1/5/8″,2-1/2″,3-5/8″,4″,6″&8″wide solutions
Design thicknesses from 0.0161–0.0346
19,30,33 Mils Solutions
Be assured,when you order metal stud framing from Hopestar we have you covered with prime hot dipped galvanized steel.For a full range of technical Data for Hopestar Interior Drywall Framing please visit the Hopestar Submittal Builder.
Product Code Product Information Width(mm)Design thickness Coating Mils Lb/ft
CS-15820 1-5/8"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.019 G40 19 Mils 0.28
CS-15820-G60 1-5/8"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.019 G60 19 Mils 0.28
CS-15830 1-5/8"30 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.0312 G40 30 Mils 0.45
CS-15830-G60 1-5/8"30 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.0312 G60 30 Mils 0.45
CS-15833 1-5/8"33 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.0346 G40 30 Mils 0.51
CS-15833-G60 1-5/8"33 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.0346 G60 30 Mils 0.51
CS-21220 2-1/2"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2”0.019 G40 19 Mils 0.35
CS-21220-G60 2-1/2"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2"0.019 G60 19 Mils 0.35
CS-21230 2-1/2"30 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2"0.0312 G40 30 Mils 0.55
CS-21230-G60 2-1/2"30 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2"0.0312 G60 30 Mils 0.55
CS-21233 2-1/2"33 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2"0.0346 G60 33 Mils 0.62
CS-21233-G90 2-1/2"33 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2"0.0346 G90 33 Mils 0.62
CS-35820 3-5/8"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 3-5/8"0.019 G40 19 Mils 0.42
CS-35820-G60 3-5/8"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 3-5/8"0.019 G60 19 Mils 0.42
CS-35830 3-5/8"30 Mils CrocStud®Drywall Stud with 1-1/4"Flange 3-5/8"0.0312 G40 30 Mils 0.66
CS-35830-G60 3-5/8"30 Mils CrocStud Drywall Stud with 1-1/4"Flange 3-5/8"0.0312 G60 30 Mils 0.66
Let’s grow together.We have advanced production equipment,leading production techniques,and strictly quality control.And We manufacture products from high-quality steel coils,products,and sales service make as your one-stop decoration construction supply shop.Hopestar Building is the senior steel manufacturer,the factory has more than 50 sets of production lines for galvanized steel profiles,T grid,and Accessories.The annual product quantity is 20,000 Tons.The factory has developed business with South America,Europe,Africa,and Oceania.we supply and have a commitment to making customers’projects a reality.
The premium range of CrocStud Steel Stud Framing Systems from Hopestar are made from only prime galvanized steel and do not use any“Cold Reduced Coil Stock”.
CrocStud Drywall Studs feature a ribbed face that makes CrocStud stronger for less twist and superior screw penetration.Available standard with G40 Galvanized Coating;CrocStud can also be coated with G60 and G90 coating on request.
Featuring a wide range of components Hopestar Interior Drywall Framing Studs that are tested by STAR Structural Testing and Research Inc.and are rolled from prime galvanized American made steel.
Available in a variety of steel stud sizes:
1/5/8″,2-1/2″,3-5/8″,4″,6″&8″wide solutions
Design thicknesses from 0.0161–0.0346
19,30,33 Mils Solutions
Be assured,when you order metal stud framing from Hopestar we have you covered with prime hot dipped galvanized steel.For a full range of technical Data for Hopestar Interior Drywall Framing please visit the Hopestar Submittal Builder.
Product Code Product Information Width(mm)Design thickness Coating Mils Lb/ft
CS-15820 1-5/8"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.019 G40 19 Mils 0.28
CS-15820-G60 1-5/8"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.019 G60 19 Mils 0.28
CS-15830 1-5/8"30 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.0312 G40 30 Mils 0.45
CS-15830-G60 1-5/8"30 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.0312 G60 30 Mils 0.45
CS-15833 1-5/8"33 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.0346 G40 30 Mils 0.51
CS-15833-G60 1-5/8"33 Mils CrocStud®Drywall Stud with 1-1/4"Flange 1-5/8"0.0346 G60 30 Mils 0.51
CS-21220 2-1/2"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2”0.019 G40 19 Mils 0.35
CS-21220-G60 2-1/2"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2"0.019 G60 19 Mils 0.35
CS-21230 2-1/2"30 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2"0.0312 G40 30 Mils 0.55
CS-21230-G60 2-1/2"30 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2"0.0312 G60 30 Mils 0.55
CS-21233 2-1/2"33 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2"0.0346 G60 33 Mils 0.62
CS-21233-G90 2-1/2"33 Mils CrocStud®Drywall Stud with 1-1/4"Flange 2-1/2"0.0346 G90 33 Mils 0.62
CS-35820 3-5/8"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 3-5/8"0.019 G40 19 Mils 0.42
CS-35820-G60 3-5/8"19 Mils CrocStud®Drywall Stud with 1-1/4"Flange 3-5/8"0.019 G60 19 Mils 0.42
CS-35830 3-5/8"30 Mils CrocStud®Drywall Stud with 1-1/4"Flange 3-5/8"0.0312 G40 30 Mils 0.66
CS-35830-G60 3-5/8"30 Mils CrocStud Drywall Stud with 1-1/4"Flange 3-5/8"0.0312 G60 30 Mils 0.66
Let’s grow together.We have advanced production equipment,leading production techniques,and strictly quality control.And We manufacture products from high-quality steel coils,products,and sales service make as your one-stop decoration construction supply shop.Hopestar Building is the senior steel manufacturer,the factory has more than 50 sets of production lines for galvanized steel profiles,T grid,and Accessories.The annual product quantity is 20,000 Tons.The factory has developed business with South America,Europe,Africa,and Oceania.we supply and have a commitment to making customers’projects a reality.
