Ceiling Furring Channel Service.SRPTM TOP CROSS RAIL SYSTEMS
The Hopestar Top Cross Rail Systems have been designed to allow for either the Hopestar 16 or the Hopestar 28 batten,when suspended on wire or droppers.
Establish height of finished ceiling in accordance with architectural design and mechanical
Fix Perimeter channel or angle in place around the wall edges with 8 gauge x 32mm screws at 600 centres.This will supply sufficient edge support to complement suspended components.

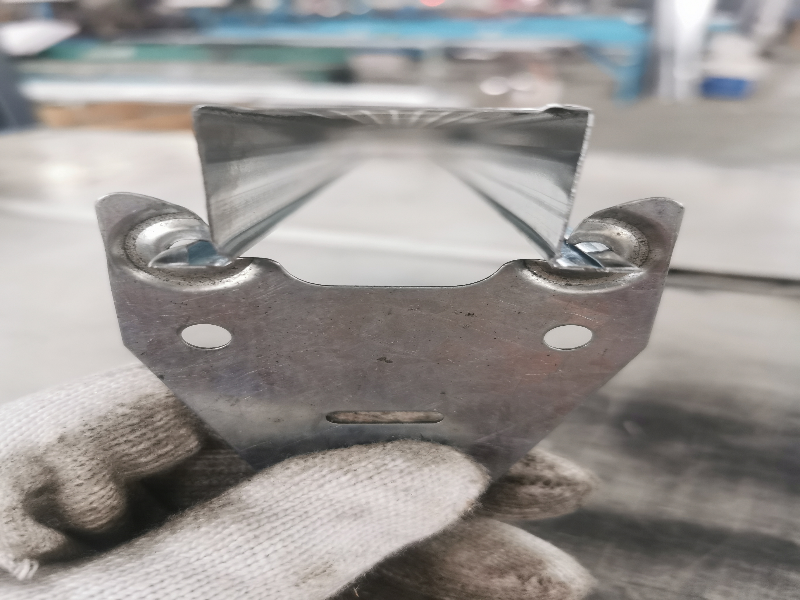

Top Cross Rail connector clips should be securely snap locked into position.Positive engagement is confirmed by definite clicking sound of the engagement points.
28mm or 16mm ceiling battens are then located into locating lugs in the legs of the Top Cross Rail clips to allow seating into final location point.Top Cross Rails should be placed at 1200 centres or as per the centres specified in the loading charts.
Wires are set at 1200mm centres or as per the charts and wrapped around the Top Cross Rail one wrap and then twitched back on itself a minimum of 3 turns.
Jointers are available in 400mm lengths.These are splayed over the butt joint to give cover of 200mm either side of the butt joint.Screw fixings must penetrate through the main body of the suspended Top Cross Rail and into the jointer 100mm either side of the butt joint using selftapping wafer button head screws.The Top Cross Rail must run continuously over at least three spans between wire suspension points.
Let’s grow together.We have advanced production equipment,leading production techniques,and strictly quality control.And We manufacture products from high-quality steel coils,products,and sales service make as your one-stop decoration construction supply shop.Hopestar Building is the senior steel manufacturer,the factory has more than 50 sets of production lines for galvanized steel profiles,T grid,and Accessories.The annual product quantity is 20,000 Tons.The factory has developed business with South America,Europe,Africa,and Oceania.we supply and have a commitment to making customers’projects a reality.
The Hopestar Top Cross Rail Systems have been designed to allow for either the Hopestar 16 or the Hopestar 28 batten,when suspended on wire or droppers.
Establish height of finished ceiling in accordance with architectural design and mechanical
Fix Perimeter channel or angle in place around the wall edges with 8 gauge x 32mm screws at 600 centres.This will supply sufficient edge support to complement suspended components.
Top Cross Rail connector clips should be securely snap locked into position.Positive engagement is confirmed by definite clicking sound of the engagement points.
28mm or 16mm ceiling battens are then located into locating lugs in the legs of the Top Cross Rail clips to allow seating into final location point.Top Cross Rails should be placed at 1200 centres or as per the centres specified in the loading charts.
Wires are set at 1200mm centres or as per the charts and wrapped around the Top Cross Rail one wrap and then twitched back on itself a minimum of 3 turns.
Jointers are available in 400mm lengths.These are splayed over the butt joint to give cover of 200mm either side of the butt joint.Screw fixings must penetrate through the main body of the suspended Top Cross Rail and into the jointer 100mm either side of the butt joint using selftapping wafer button head screws.The Top Cross Rail must run continuously over at least three spans between wire suspension points.
Let’s grow together.We have advanced production equipment,leading production techniques,and strictly quality control.And We manufacture products from high-quality steel coils,products,and sales service make as your one-stop decoration construction supply shop.Hopestar Building is the senior steel manufacturer,the factory has more than 50 sets of production lines for galvanized steel profiles,T grid,and Accessories.The annual product quantity is 20,000 Tons.The factory has developed business with South America,Europe,Africa,and Oceania.we supply and have a commitment to making customers’projects a reality.
