What Are the Common Sizes of Australian Light Steel Ceiling Systems?

In Australia’s construction and interior finishing industry, light steel ceiling systems are widely used in residential homes, shopping centers, offices, schools, and various commercial spaces. Due to their high strength, corrosion resistance, easy installation, and excellent adaptability, they have become a mainstream ceiling solution. For designers, contractors, and material buyers, understanding the common sizes of Australian light steel ceiling systems is crucial for efficient material selection, cost control, and structural stability.

1. Main Types of Australian Ceiling Light Steel Components

An Australian ceiling system is mainly composed of Top Cross Rails (TCR), Furring Channels, and Wall Angles, each with standardized dimensions.

2. Common Sizes of Australian Light Steel Ceiling Systems

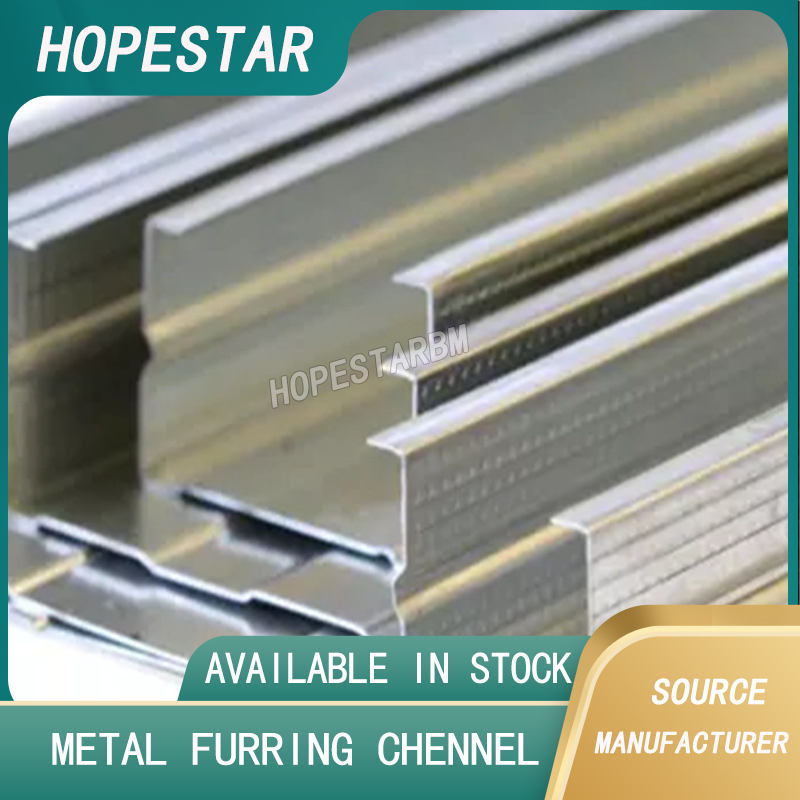

1. Furring Channel (Ceiling Secondary Channel)

Furring channels are the most widely used ceiling components, responsible for holding plasterboards and maintaining ceiling flatness. Common sizes include:

• 70 × 35 × 0.55mm

• 76 × 38 × 0.50mm

• 90 × 30 × 0.55mm

• 25 × 38 × 0.42mm (lightweight)

These specifications are suitable for both home ceilings and larger commercial areas.

2. Top Cross Rail (Main Channel)

The TCR bears the main structural load, so it is larger and thicker. Common Australian sizes include:

• 38 × 12 × 0.75mm

• 45 × 12 × 0.75mm

• 50 × 15 × 1.0mm (heavy-duty)

The thicker the TCR, the stronger the structural stability, especially for complex or heavy-load ceiling systems.

3. Wall Angle (Perimeter Channel)

Used along the ceiling perimeter to support and secure the edges. Common sizes are:

• 28 × 30 × 0.55mm

• 30 × 30 × 0.50mm

• 35 × 35 × 0.55mm

Although wall angles do not require high thickness, proper galvanization is important for rust prevention.

4. Suspension Components (Clips / Rods)

Common suspension rod sizes include:

• Ø5mm

• Ø6mm

• Ø8mm

Lengths usually range from 1m to 3m, depending on ceiling height.

3. How to Choose the Right Australian Ceiling Light Steel Sizes?

1. Home Ceilings: 25×38mm or 70×35mm furring channels are sufficient.

2. Shopping Malls / Offices: 76×38mm or 90×30mm with thicker TCRs for added stability.

3. Large Venues: Heavy-duty 0.75–1.0mm main channels for enhanced strength.

4. Humid Regions: Choose materials with higher galvanizing levels for maximum corrosion resistance.
