What Is A Furring Hat Channel in Construction?

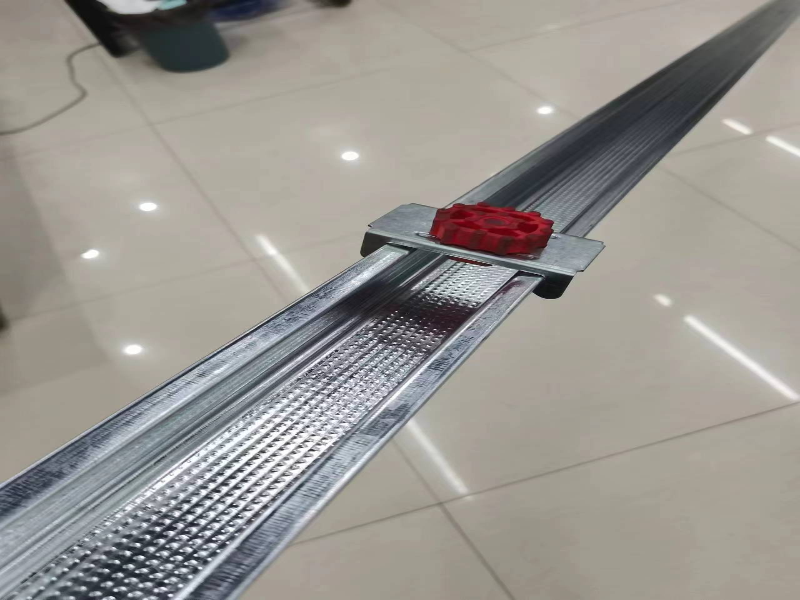

A furring hat channel is a type of metal furring channel used in construction to create a level surface for attaching drywall, paneling, or other finishing materials. It is called a "hat channel" because its cross-sectional shape resembles a hat, with a raised center and flanges on either side.

Key Functions of a Hat Channel:

1. Leveling Surfaces – Helps create a smooth, even surface over uneven walls or ceilings, especially over masonry, concrete, or existing framing.

2. Moisture Protection – Provides an air gap between the wall and finishing materials, preventing moisture buildup and reducing the risk of mold and mildew.

3. Structural Support – Enhances the strength and stability of walls and ceilings, ensuring durability.

4. Soundproofing – Often used in sound isolation systems, as it can hold resilient clips that reduce sound transmission.

5. Fire Resistance – Metal hat channels are non-combustible, making them suitable for fire-rated assemblies.

Common Applications:

• Walls – Installed vertically or horizontally over concrete or wood framing.

• Ceilings – Suspended from joists or beams to support drywall or acoustic tiles.

• Exterior Cladding – Used as a support structure for siding or façade systems.

Hat channels are typically made of galvanized steel or aluminum, providing durability and resistance to rust and corrosion.
