What is the difference between top hats and furring channels?

Top hats and furring channels are both metal framing components used in construction, primarily for supporting cladding, ceilings, and walls. However, they have distinct differences in design and application:

1. Shape and Design

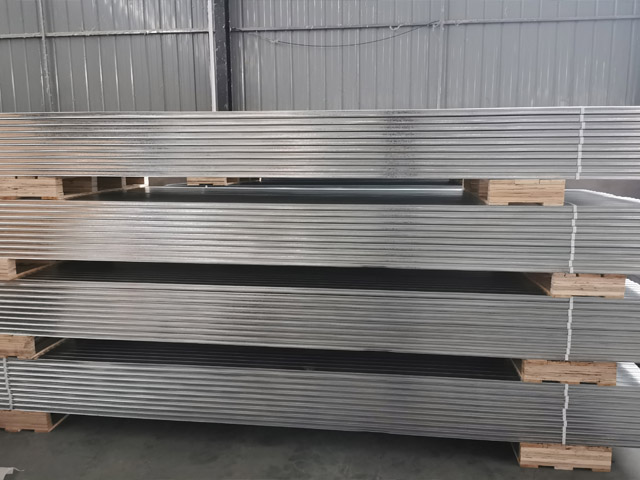

• Top Hats:

  • Named for their resemblance to a top hat.
  • Features a broad, flat top with two vertical flanges extending downward.
  • Provides strong structural support with better rigidity.

• Furring Channels:

  • Typically have a "C" or "Z" shape.
  • Designed to create a leveling surface for attaching drywall, plasterboard, or ceiling tiles.
  • Lighter and more flexible compared to top hats.

2. Primary Uses

• Top Hats:

  • Used in exterior cladding systems, soffits, and façade installations.
  • Ideal for applications requiring higher strength and wind resistance.
  • Often used in metal cladding, fiber cement panels, and other heavy-duty installations.

• Furring Channels:

  • Commonly used for suspending ceilings and furring out walls.
  • Helps create a smooth surface over uneven substrates before installing drywall.
  • Used in interior and some exterior applications but not for heavy cladding.

3. Load-Bearing Capability

• Top Hats:

  • Stronger and designed to handle greater loads.
  • Suitable for situations with high wind loads or heavy cladding materials.

• Furring Channels:

  • Lighter and mainly used for non-load-bearing applications.
  • Ideal for framing lightweight materials like drywall.

4. Installation

• Top Hats:

  • Usually fixed directly to structural elements like masonry, concrete, or steel.
  • Often spaced further apart due to their strength.

• Furring Channels:

  • Typically installed on top of battens or attached to existing structures with clips or direct fixing.
  • More closely spaced to support drywall sheets properly.

Which One to Use?

• Choose top hats when structural strength, wind resistance, and exterior cladding support are required.
• Choose furring channels for leveling walls, ceilings, and lightweight interior installations.
