Enmarcado de pared de acero.

Perfiles metálicos de paredes secas

50*35mm,70*35mm
pedido mínimo
1000 metro
Disponibilidad
10000metro / De
Cantidad:
US $0.50 - US $0.50 / metro
enviar contacto
Añadir al carrito
  • Product name:ceiling frame
  • Application:building construction material
  • Color:Silver White
  • Surface treatment:Hot Dipped Galvanized
  • hot dip galvanized steel profile Length:1m-12m
  • ceiling frame Thickness:0.12 ----1.50mm
  • Zinc coating:Z40-Z180
  • ceiling frame Delivery:15 Days
  • Port:Tianjin port
  • Warranty:1 Year
  • ceiling frame After-sale Service:Online technical support
  • Project Solution Capability:graphic design
  • Project Solution Capability:total solution for projects
  • ceiling frame Application:Office Building
  • Design Style:Modern
  • ceiling frame Place of Origin:CN;HEB
  • Brand Name:HOPESTAR
  • light steel keel materiar:Q195
hot dip galvanized steel profileCompany Information


ceiling frame Product Details

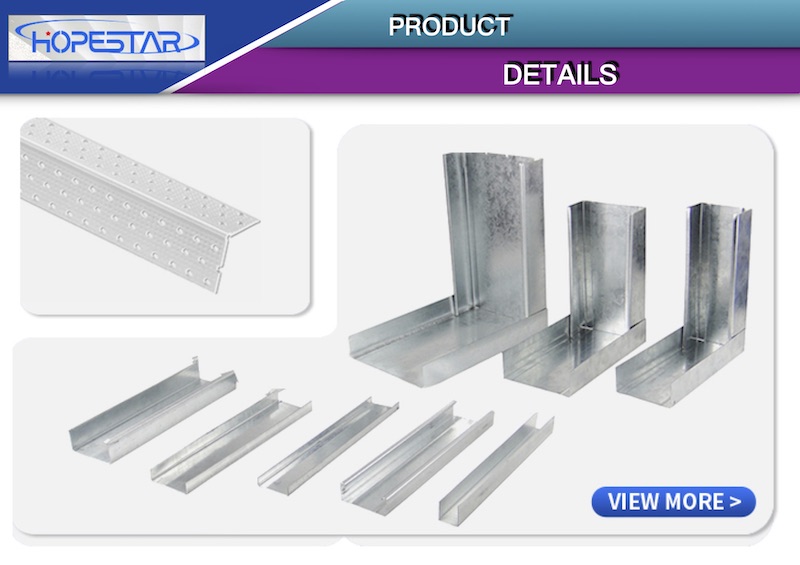

2Product Details

Product Description

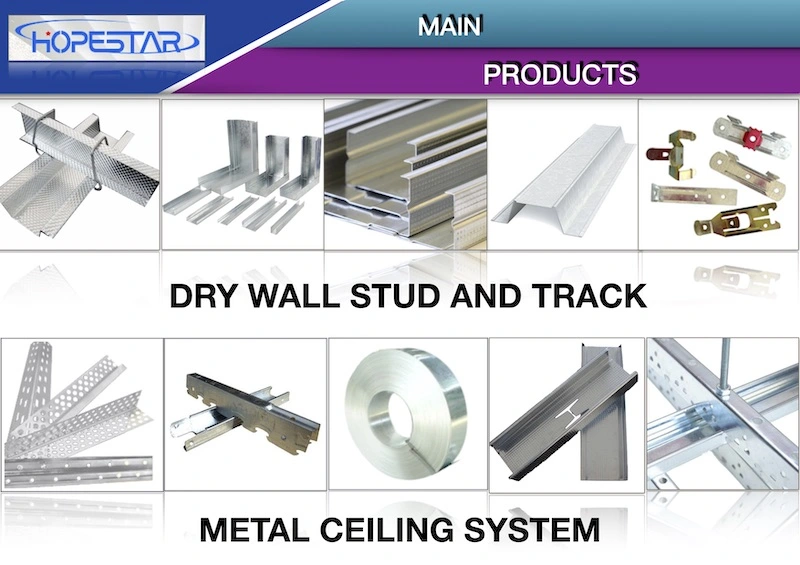

3Main Product

light steel keel Specifications for Middle East

Main Channel38*12 38*11 38*10
Furring Channel68*35*22
Wall Angle25*25 24*24 22*22 21*21 30*30
C Stud70*35 73*35 70*32 50*35 hot dip galvanized steel profile
U Track72*25 75*25 52*25

hot dip galvanized steel profile Specifications for Auatralia

Top Cross Rail26.3*21*0.75
25*21*0.75
Furring Channel28*38*0.55
16*38*0.55
Furring Channel Track28*20*30*0.55
16*26*16*0.55
Stud64*33.5*35.5
51*33.5*35.5
76*33.5*35.5*0.55
92*33.5*35.5*0.55
150*33.5*35.5*0.55
Track51*32 64*32 76*32 92*32 150*32
Wall Angle30*10 30*30 35*35

light steel keel Specifications for Southeast Asia

Main Channel38*12 hot dip galvanized steel profile
Top Cross Rail25*15 hot dip galvanized steel profile
Furring Channel50*19
Cross Channel36*12 38*20
Wall Angle25*25
Stud63*35 76*35
Track64*25 77*25

Spcifications for America

Main Channel38*12
Furring Channel35*72*13
Wall Angle25*25 30*30 hot dip galvanized steel profile
Stud41*30 63*30 92*30 150*30
Track43*25 63*25 65*25 92*25 152*25

light steel keel  Specifications for Europe

CD light steel keel 60*27
UD28*27
CW50*50 75*50 100*50
UW50*40 75*40 100*40

hot dip galvanized steel profile  Remark: We offer OEM service for all globle marker, we can produce the products with different sizes as customer require customized.

Our Services

7OurServices

ceiling frame Packaging & Shipping

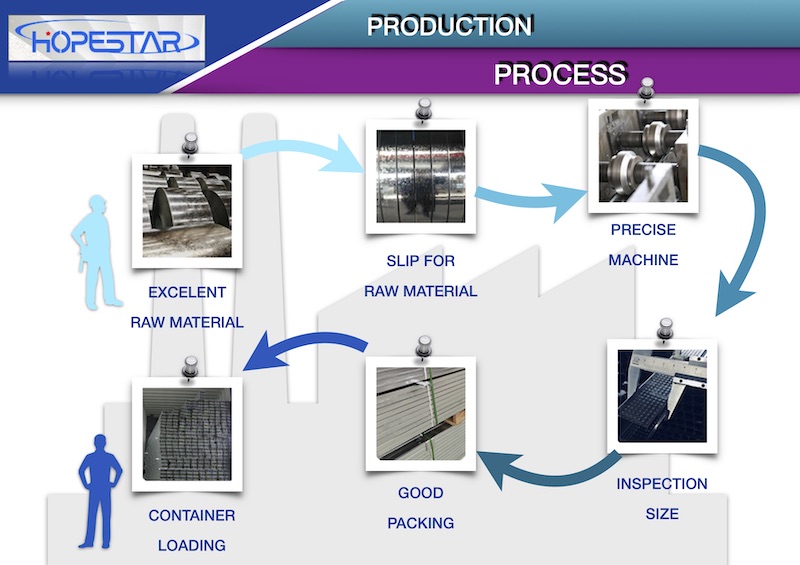

6ProductionProcess

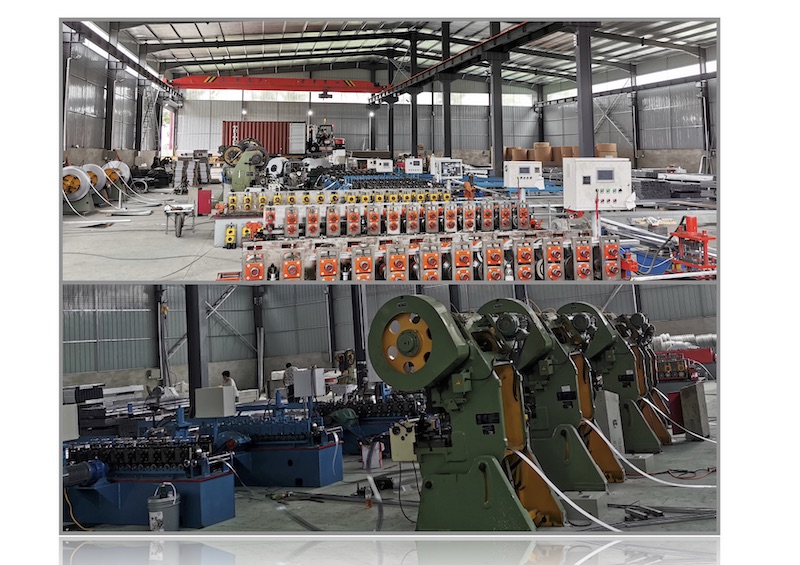

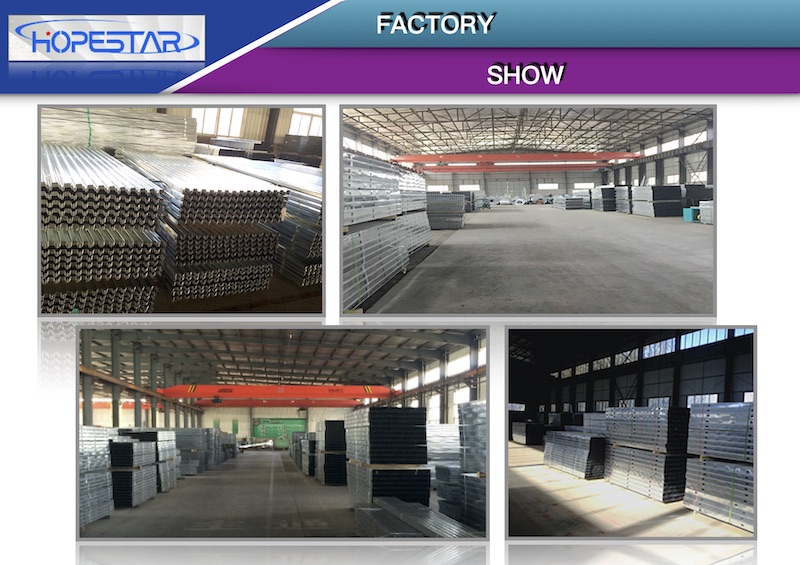

FactoryShow

8FactoryShow8FactoryShow2

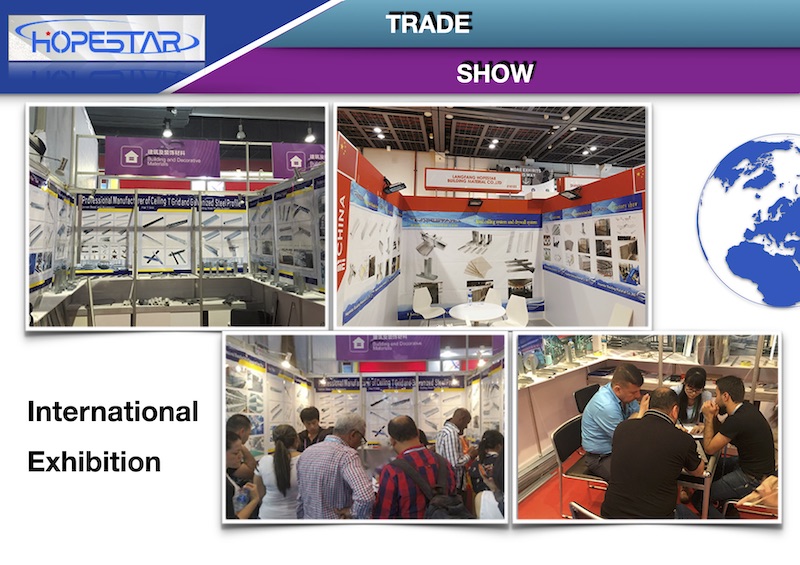

TradeShow
