Materiales de construcción de metal

Pánel de yeso Partición Montante y pista de metal

Q195/Q235
pedido mínimo
10000 tonelada
Disponibilidad
8000tonelada / El
Cantidad:
US $0.10 - US $0.86 / tonelada
enviar contacto
Añadir al carrito
  • Place of Origin:CN;HEB
  • Model Number:Q195/Q235
  • Brand Name:HOPESTAR
  • Material:Hot Dipped Galvanized Steel
  • Application:Suspended Ceiling System
  • Function:Waterproof Fireproof
  • Surface treatment:Zinc Coated
  • Type:Ceiling Grid Components
Product Description

Cold Formed C Stud U Track Drywall Partition Light Steel Keel

Product Description

Specifications for Middle East

Main Channel38*12 38*11 38*10
Furring Channel68*35*22
Wall Angle25*25 24*24 22*22 21*21 30*30
C Stud70*35 73*35 70*32 50*35
U Track72*25 75*25 52*25

Specifications for Auatralia

Top Cross Rail26.3*21*0.75
25*21*0.75
Furring Channel28*38*0.55
16*38*0.55
Furring Channel Track28*20*30*0.55
16*26*16*0.55
Stud64*33.5*35.5
51*33.5*35.5
76*33.5*35.5*0.55
92*33.5*35.5*0.55
150*33.5*35.5*0.55
Track51*32 64*32 76*32 92*32 150*32
Wall Angle30*10 30*30 35*35

Specifications for Southeast Asia

Main Channel38*12
Top Cross Rail25*15
Furring Channel50*19
Cross Channel36*12 38*20
Wall Angle25*25
Stud63*35 76*35
Track64*25 77*25

Spcifications for America

Main Channel38*12
Furring Channel35*72*13
Wall Angle25*25 30*30
Stud41*30 63*30 92*30 150*30
Track43*25 63*25 65*25 92*25 152*25

Specifications for Europe

CD60*27
UD28*27
CW50*50 75*50 100*50
UW50*40 75*40 100*40

Remark: We offer OEM service for all globle marker, we can produce the products with different sizes as customer require customized.

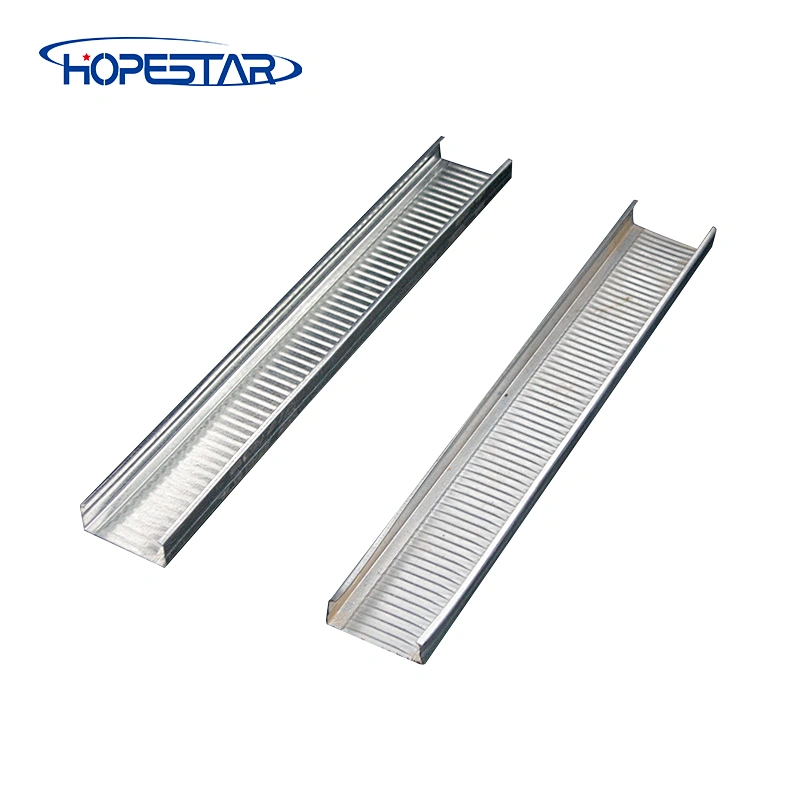

Gypsum Board Partition Metal Stud and Track/Metal Profile C and U Channel

HOPESATR's light steel atopt the quality cold-rolld continuous hot galvanized rolled coils as materials,ensuring even texture,proper hardness,light weight,fire proof and convenient for assembling.They will not be influenced by any season,thus can markedly shorten construction period and enhancework efficiency.

Australian metal stud series
Top Cross Rail 26.3*21mm
Furring channel 38*16mm,38*28mm
Furring channel track 16*26*13mm,28*20*30mm
Wall angle 30*10mm,30*30mm,35*35mm
Stud 51*33.5*35.5mm,64*33.5*35.5mm,76*33.5*35.5mm,92*33.5*35.5mm,150*33.5*35.5mm
Track 51*32mm,64*32mm,76*32mm,92*32mm,150*32mm


Advantage
Convenient in installation
Light-weighted,Environment Friendly,and economical
A solid roof structure
With good effect for space dividing and beautifying



Our Services

1. If you email to us, we will get back to you within 12 hours, normally a lot sooner
2. Make sure the size and thickness, you will get a more precise price
3. We provide all kinds of specifications for your choise
4. Estimated delivery may be affected by holidays, such as spring festival,national day
5. Free sample is acceptalbe, just you should pay the delivery fees
6. Free document: commercial invoice, packing list and certification of original
7. The price of the models are subject to our final confirmation
8. The product cross-section can be customized(clear, with hole or with dot)
9. FOB port: Xingang Tianjin
